Solutionbee graphs display data with weight on the y-axis because generally beekeepers want to track the weight of their beehives. Users of nitrogen tanks for cryogenic storage, on the other hand, want to monitor the liquid nitrogen levels in their tanks by linear units.
In order to more conveniently display linear units as an indication of nitrogen level in tanks, formulas can be used to convert the y-axis on graphs from weight to linear units.

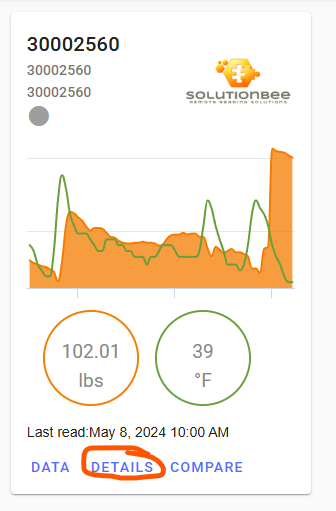

1. Select Details.

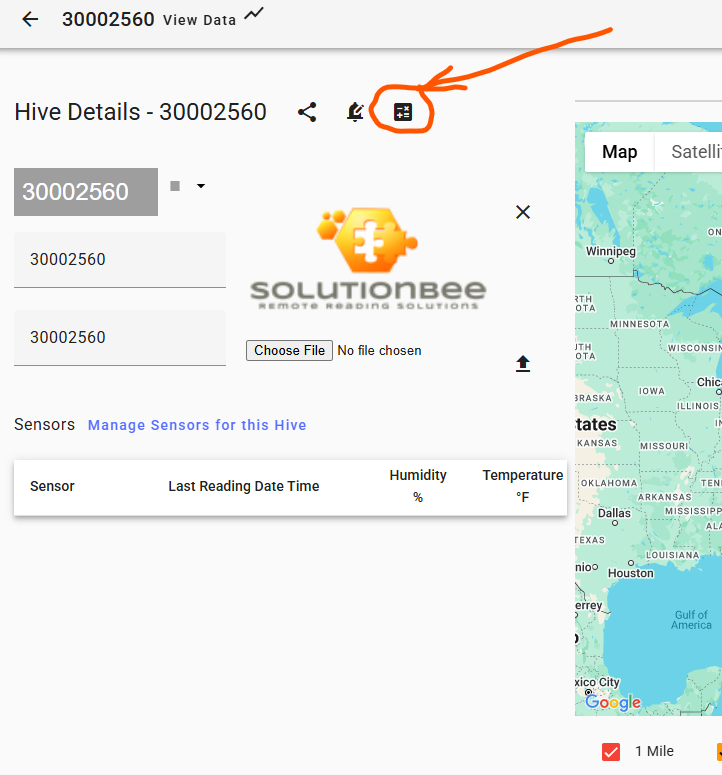

2. Select the Formulas icon.

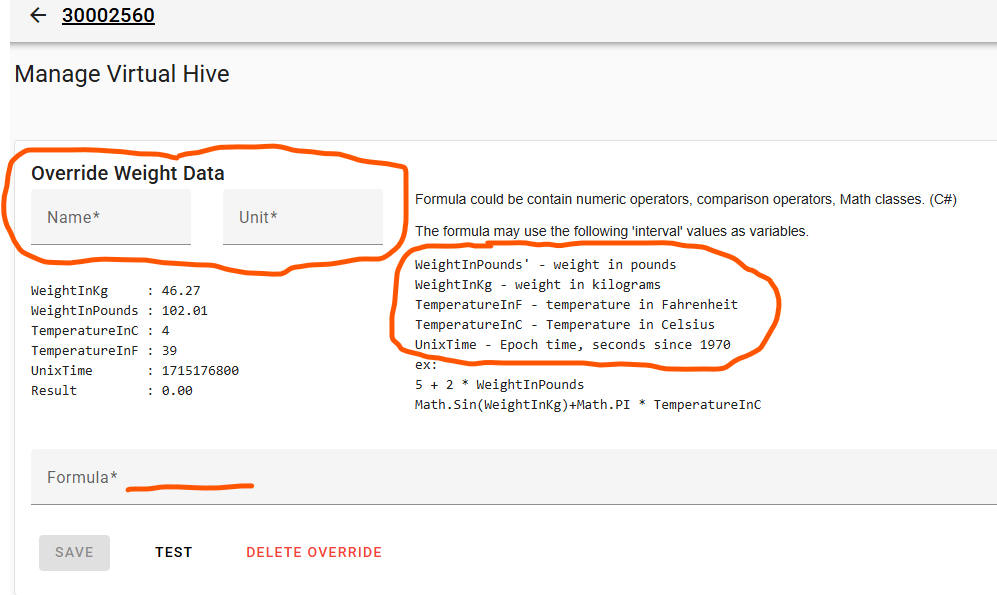

3. Fill in the Name and Unit field (e.g. Tank A Nitrogen level, cm). Generate a formula and place it in the Formula field (e.g. WeightInPounds*0.002)
4.

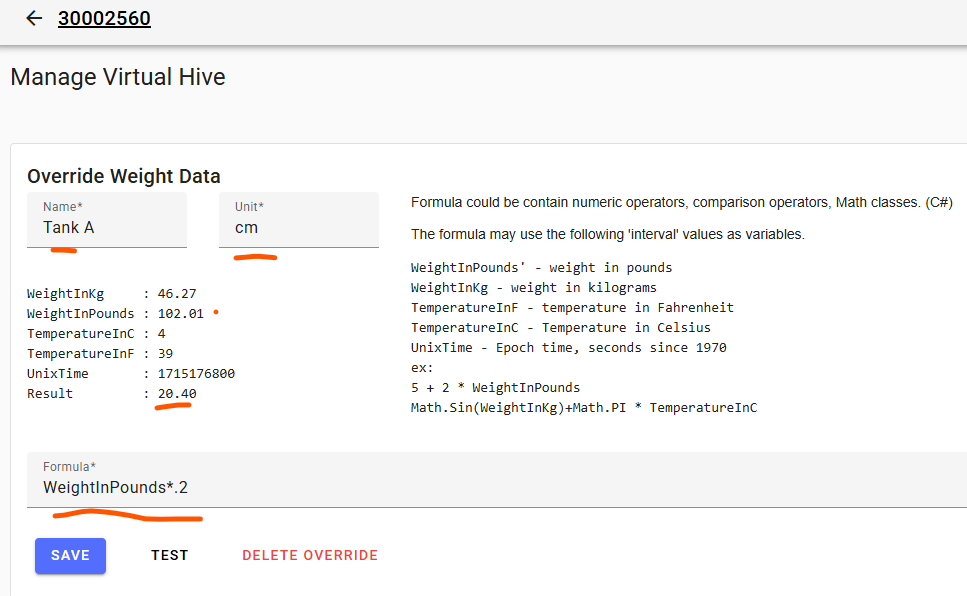

Pressing Test, will try to evaluate formula with latest recorded values with the result given (circled in red).
Pressing Save will save settings, and from now on, data will contain the evaluation of new formula for each interval
Pressing "Delete Override" will revert the setting back to weight.

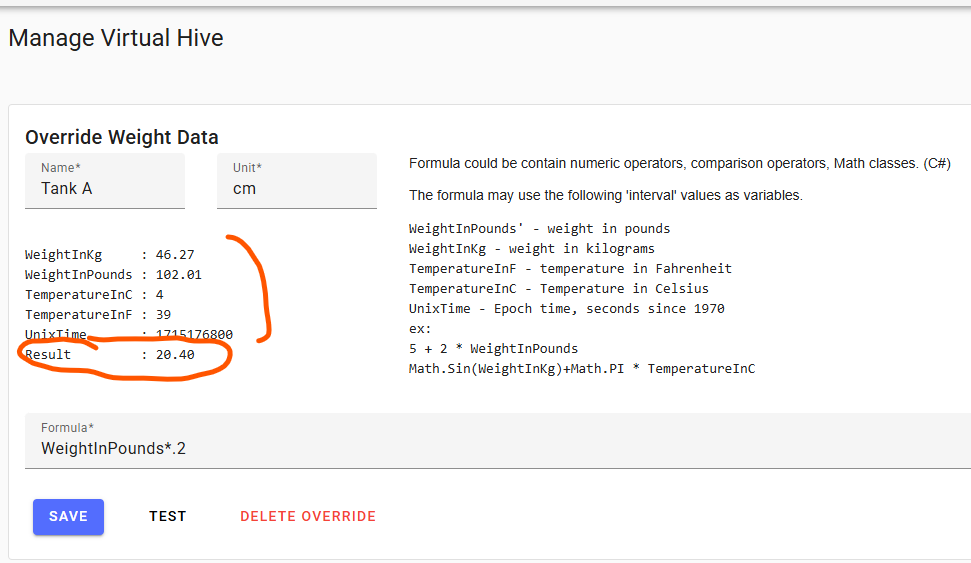

5. Example:
