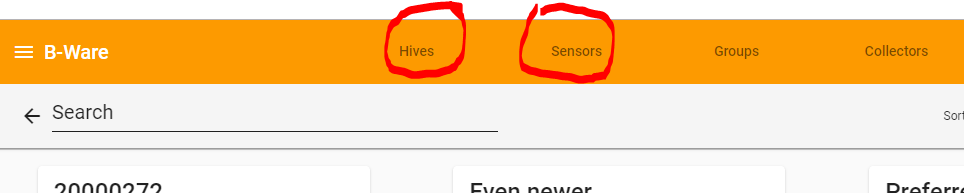

HM-5's and HM-20's are uploaded to the cloud and visible in the Monitors tab. HM-1 data is uploaded to the cloud and is visible in the Sensors tab.
However, it is possible to superimpose your sensor data on your weight data for a specific hive. This is obviously desirable since both sets of data are reflections of the same honeybee colony.
Making an association is easy... you can in fact associate several sensors to one hive.

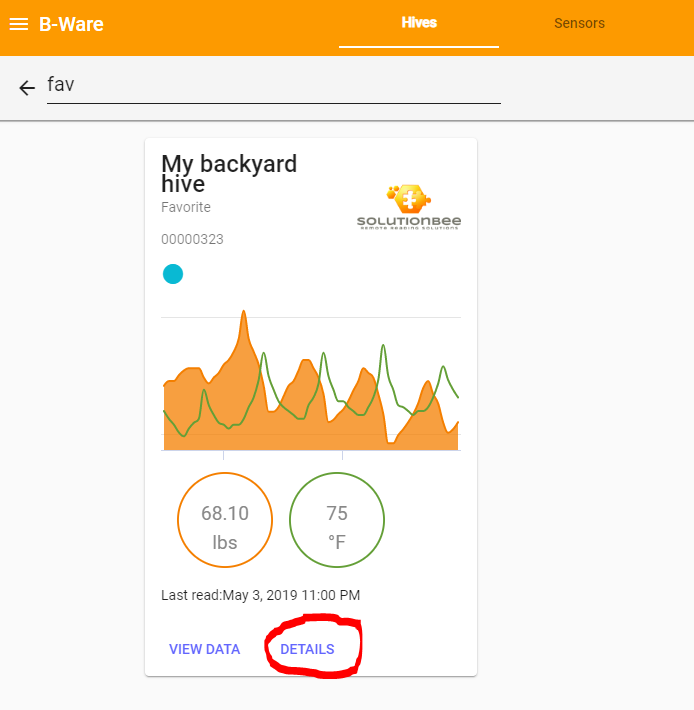

1.) In the Hives tab, select a monitor that contains an HM-1 sensor and click on the "Details" link.

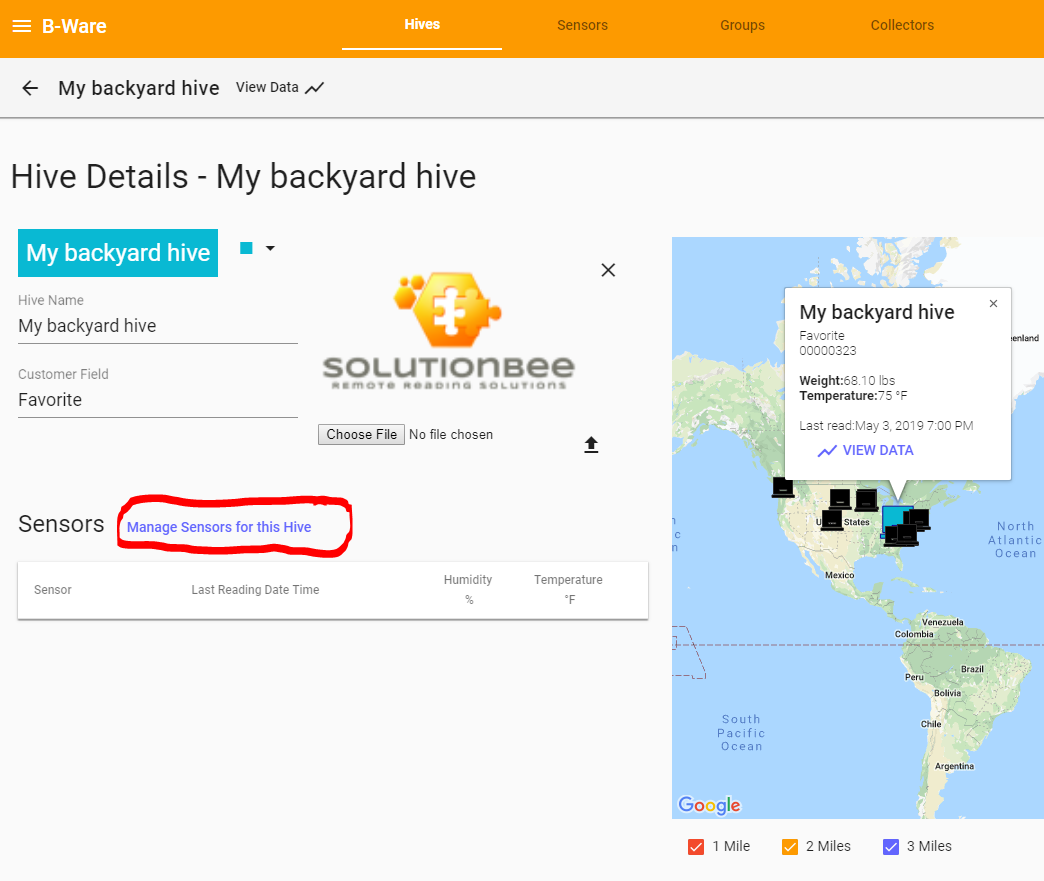

2.) Select "Manage Sensors for this Hive".

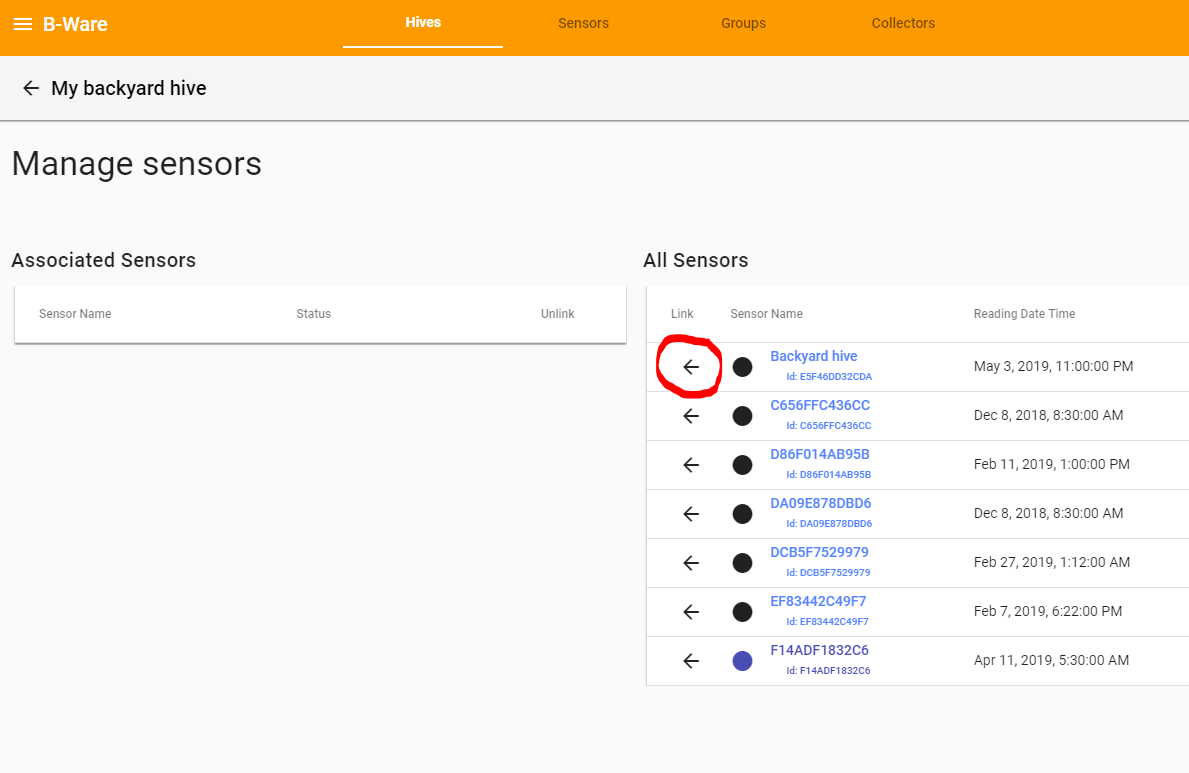

3.) A list of your sensors (you must have already had uploaded data from your HM-1 to the cloud at least once) will appear. Select the link arrow next to the sensor that is embedded inside the hive which is being measured by this HM-5 or HM-20.
4.) A small confirmation window will appear. Select "Connect".

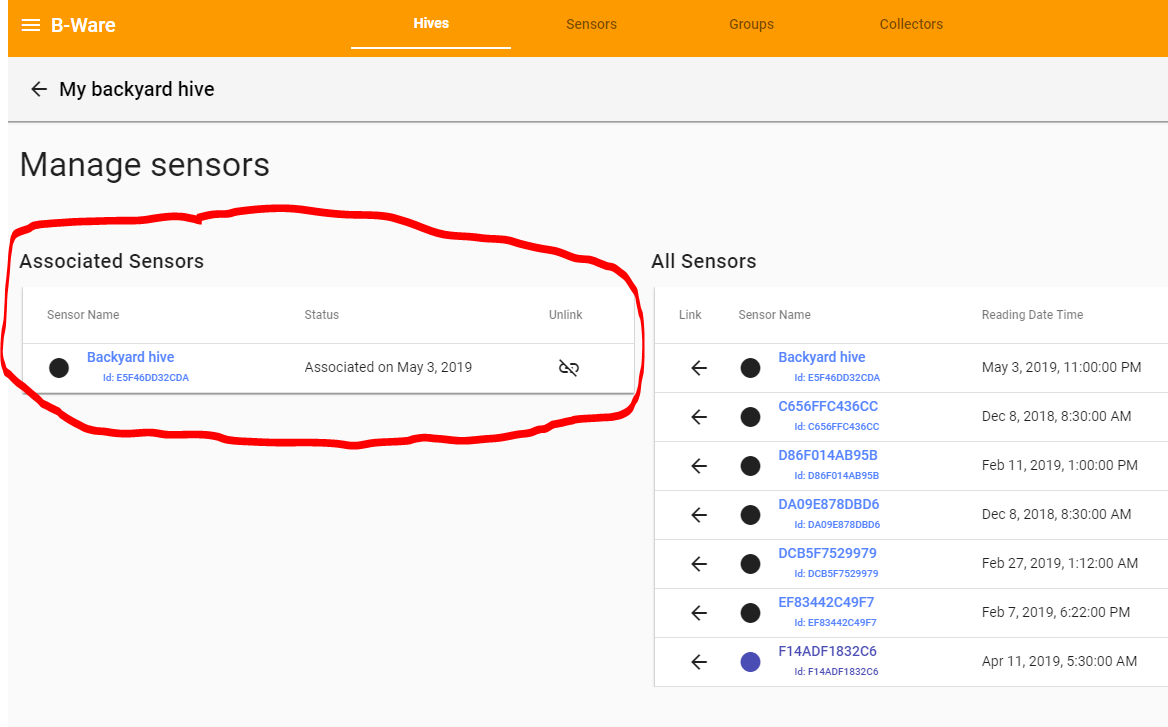

5.) Your HM-1 sensor is now associated with your HM-5 or HM-20!
To select the color of your sensor - which is directly related to the line graph:

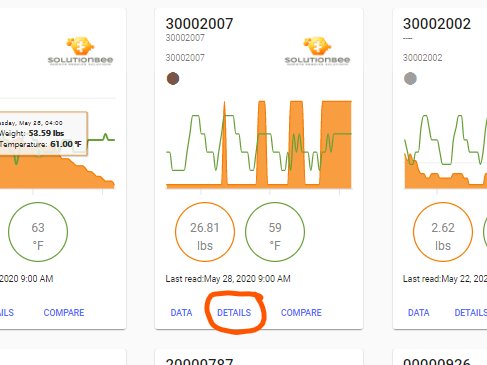

Step 1: Select Details

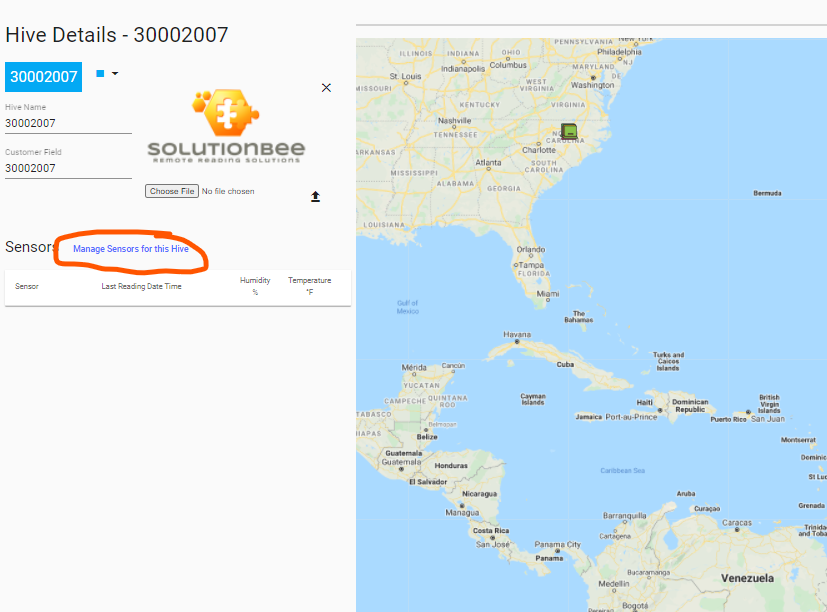

Step 2: Select "Manage Sensors for the Hive"

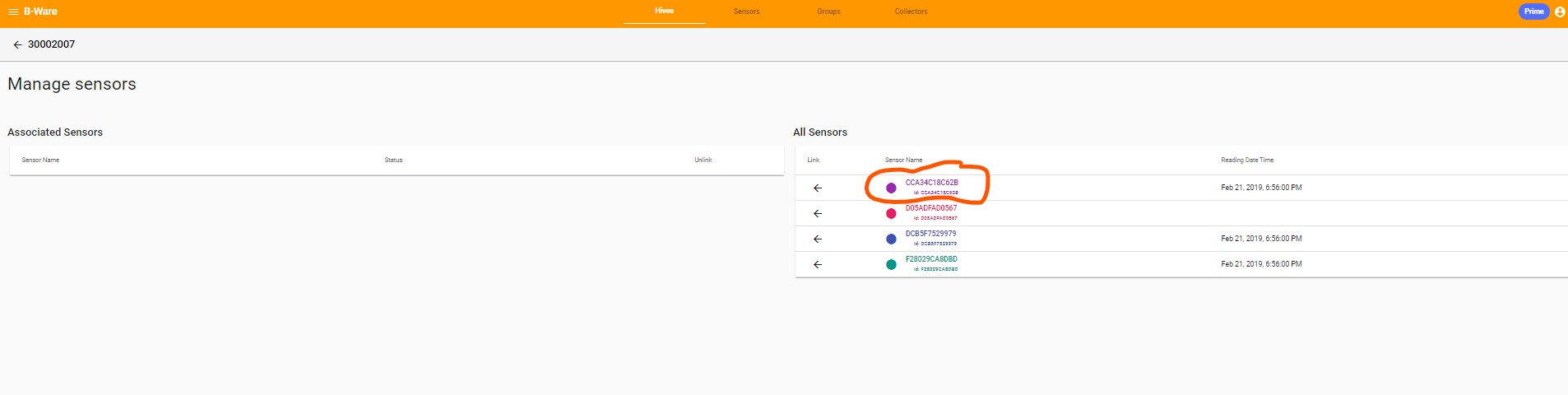

Step 3: Select the sensor

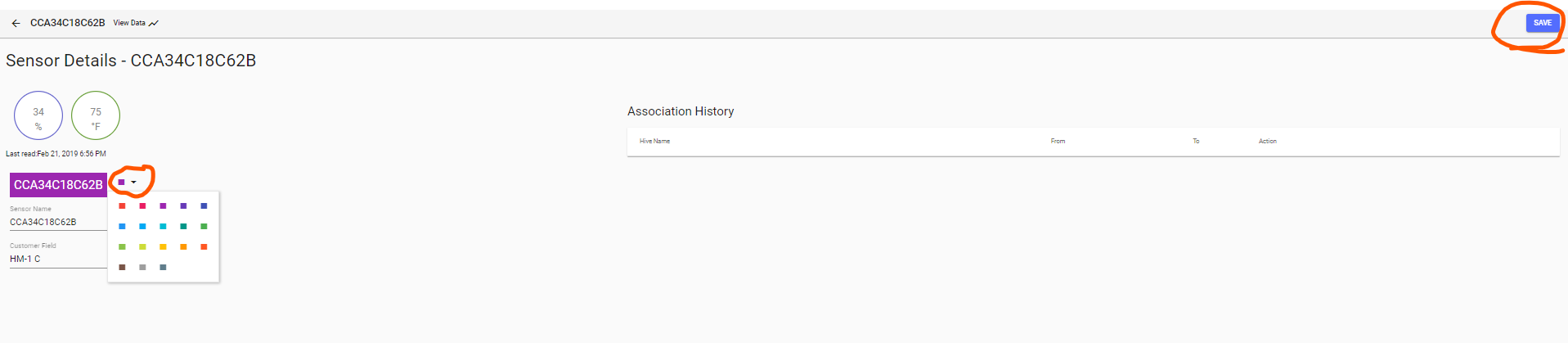

Step 4: Select color for that sensor. Then press the Save button.
Remember to press the Save button to save your changes before leaving!
